Xiaomi Aqara Temperature Humidity Sensor Review

posted in: reviews | 0

 Buy from 10$ on  Aliexpress Gearbest

This review is about Aqara temperature, humidity and atmospheric pressure sensor
for the Xiaomi smart house ecosystem.

In contrast to the white-gray boxes in which the majority of the devices is delivered, this parcel is quite colourful.

temp_01
temp_02

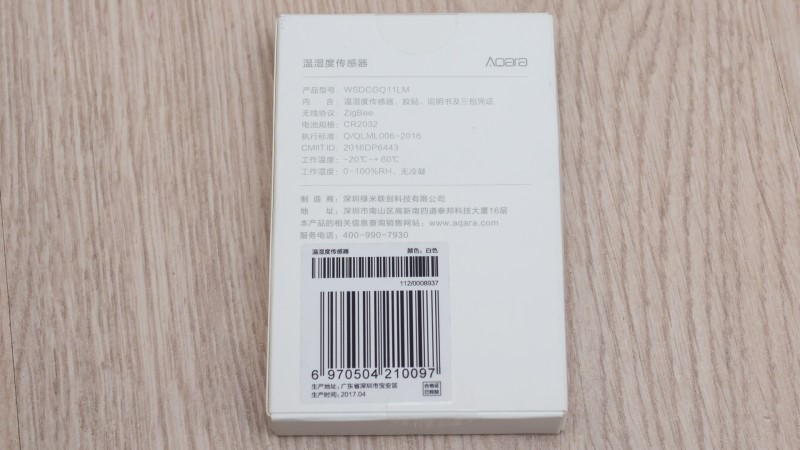

The technical specifications are on the rear side of the box as usual.I ‘d like to remind you that the device works on the ZigBee protocol through the Xiaomi gateway
or the Aqara gateway.

WHAT IS IN THE BOX?

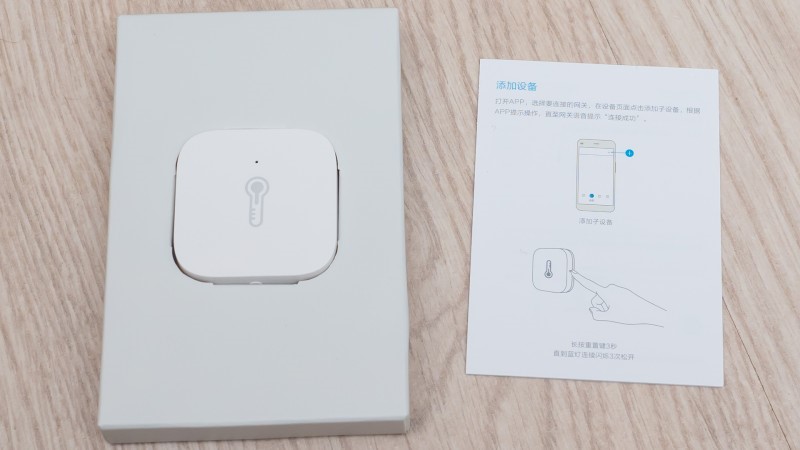

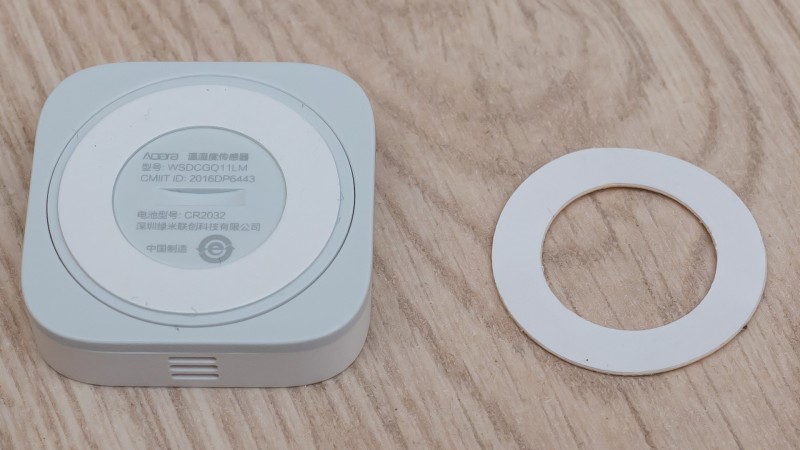

The box contains a sensor with a glued double adhesive tape, there is also the second additional piece of the adhesive tape. You can see two holes for the analysis of the temperature humidity and pressure in the lower part of the sensor. The thermometer designation and the blue LED are located at the top of the sensor.

temp_03
temp_04

Inspection and measurements

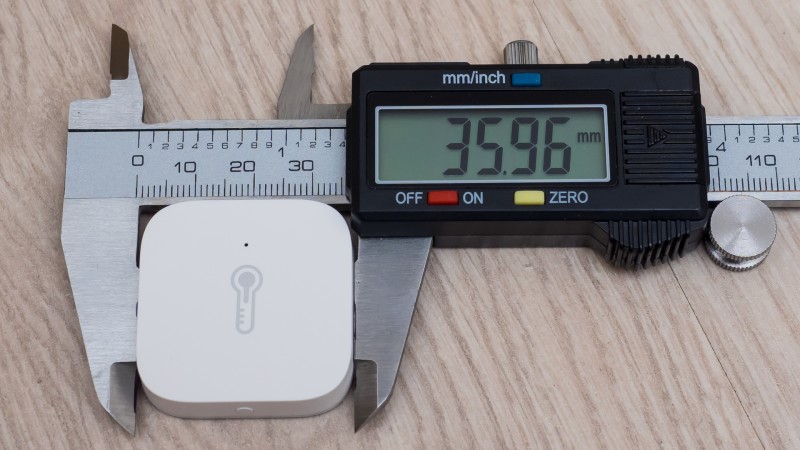

The size of the sensor is about 3.6 cm on each side.

temp_05
temp_06

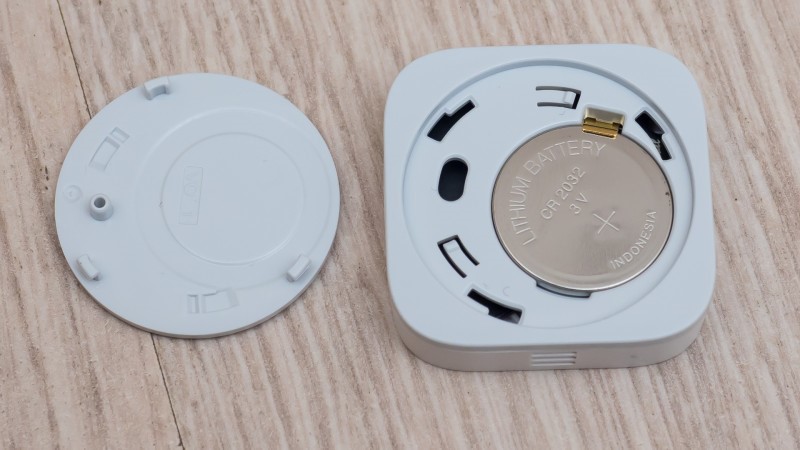

The back cover, like the back cover at the Xiaomi previos model sensor, is unscrewed by a coin, and hides the
CR2032 battery.The manufacturer claims about the operation of the sensor from one battery within 2 years, the software should warn you about the low battery level

temp_07
temp_08

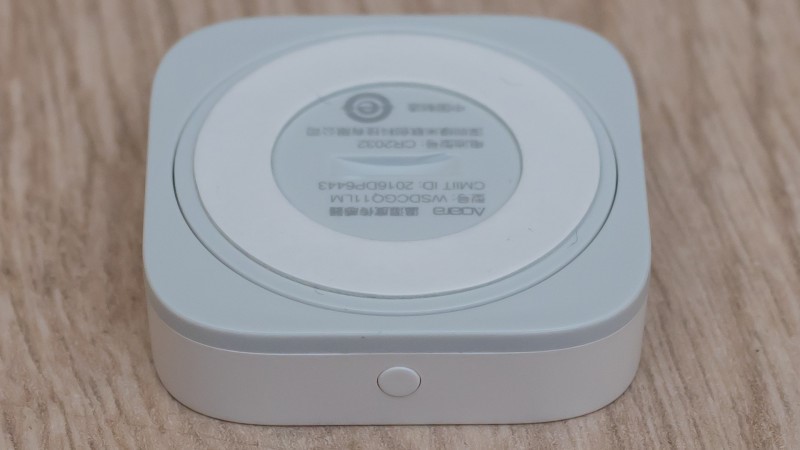

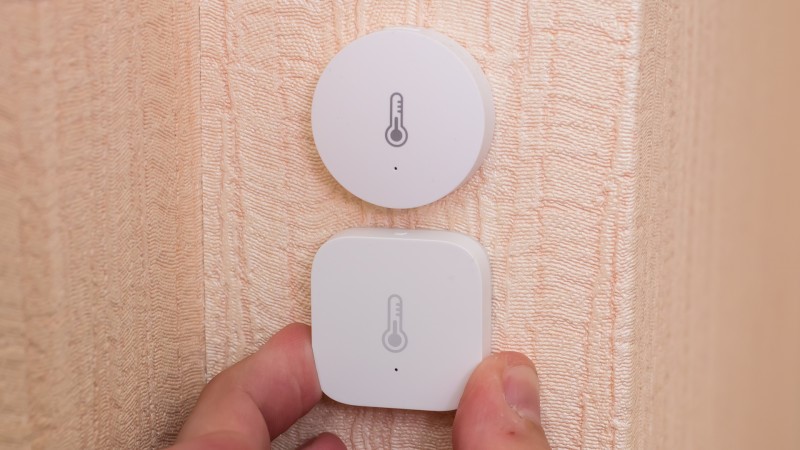

On the upper side of the sensor there is a pairing button.Here you can see the visual comparison with a sensor of the previous type.

Software

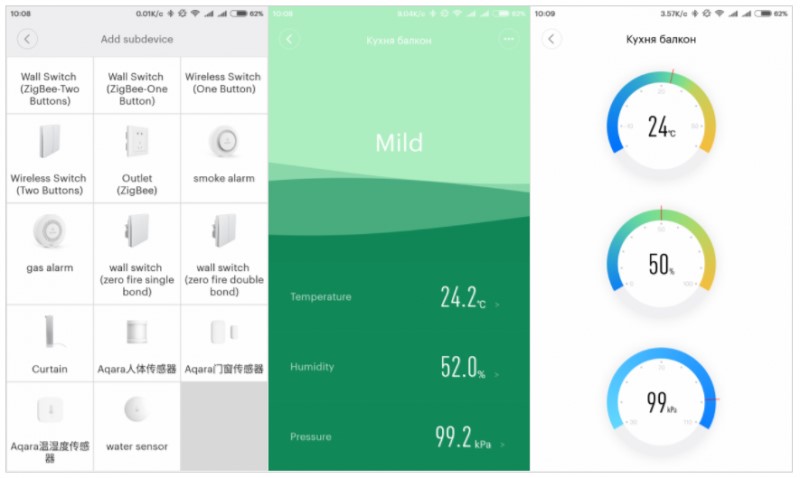

After the last update, the list of the connected devices has expanded and now it includes the water sensor and the Aqara motion opening and the temperature sensor. The appearance of the plugin is almost identical to the previous one except for a new line with an atmospheric pressure indicator in kPa. To obtain the data in mm Hg, multiply by 7.5. Accordingly there are three “switch” sensors now.

temp_09
temp_10
temp_11

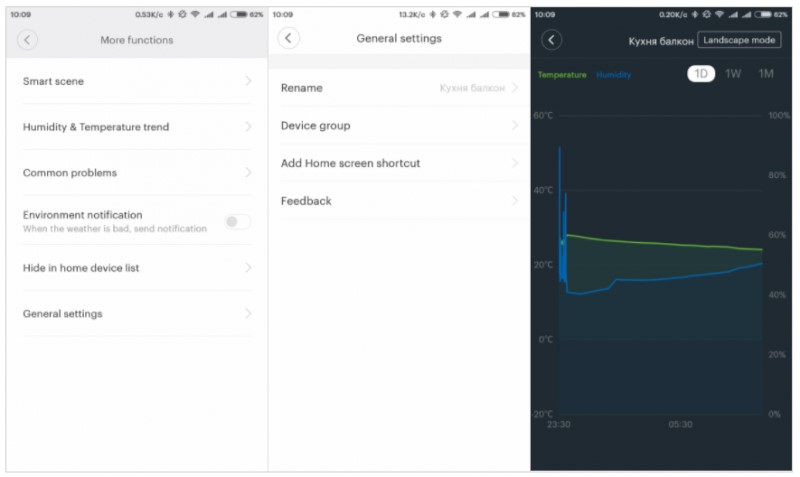

The settings menu, in comparison with the previous sensor – has not changed. It has the
same items in the same order. The chart of temperature&humidity trends are even the same. There is no pressure here

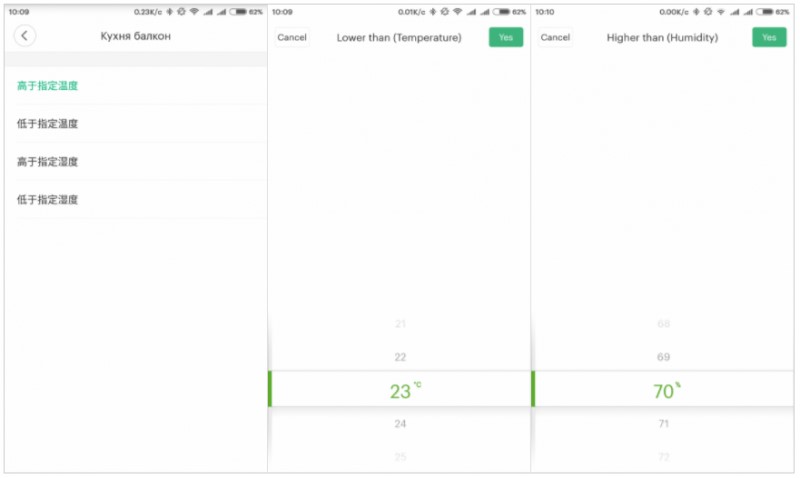

The same can be said about the smart scenarios in which the sensor participates. It offers the same 4 conditions for the triggering of the scenarios: more or less than the specified temperature and more or less than the specified humidity.



temp_12
temp_13

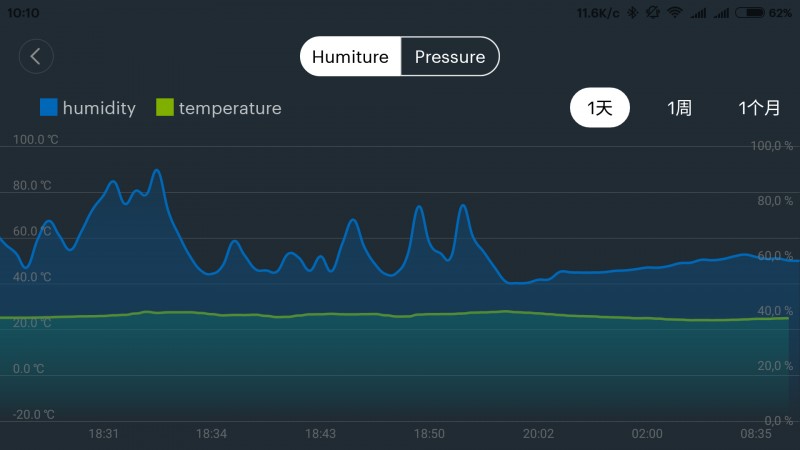

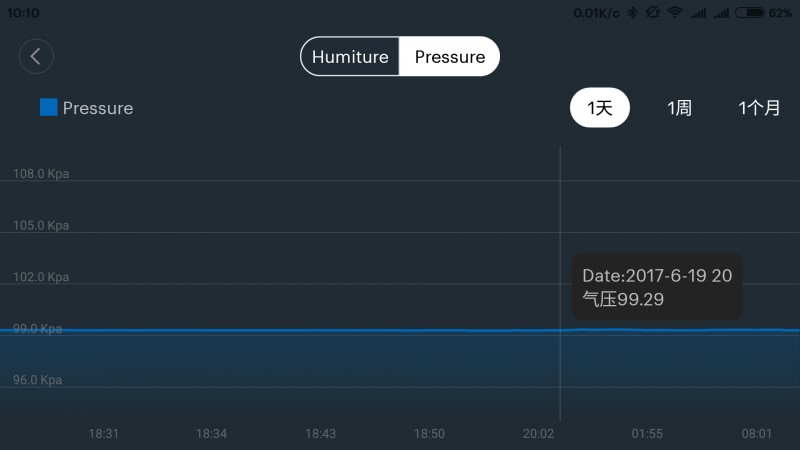

By clicking on any of the indicators in the main menu, a timeline appears, the same as on the Xiaomi sensor, but here you can already find pressure readings.
